Family Design

Semi-Cassette or Encased Awnings

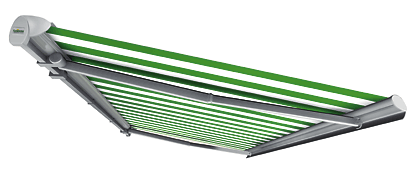

Family design plus – fully enclosed in a casing


Family design – open

awning teams outstanding technical features and modern design with the appearance of a cassette awning.

  • Front profile with very sturdy double hollow chamber.
  • Operating components largely concealed by the generous front profile.
  • Integral rain gutter, water drains off at the sides through the end caps.
  • Front profile always sits close to the case.
  • A 40 x 40 x 2 mm console tube, galvanized and powder-coated, is used.
  • Rust-resistant pins in Teflon-coated bearings.
  • High-grade steel screws
  • Valance available as an optional extra

Technical features

Up to   650 cm with 2 hinged arms
Up to   700 cm with 3 hinged arms
Up to 1300 cm, 2 units linked with 4 hinged arms
Up to 1950 cm, 3 units linked with 6 hinged arms

Arm lengths
150/200/250/300/350/400 cm
Special lengths on request

Arm lengths
150/200/250/300/350/400 cm
Special lengths on request

Electric motor fitted as standard, bevel gear available on request (price reduction). On single units 651 – 700 cm, units with 3 hinged arms and linked units always electric motor.

Special equipment
Sun and wind sensor, radio control.

Framework colours
– Silver anodized E6/EV1, small components powder-coated: silver RAL 9006
– White powder-coated RAL 9016
– Brown powder-coated RAL 8077
– Special coating possible in all RAL colours

From our Lewens collection,
branded acrylic, spun-dyed

Fitting Options








Fabric cover shell
The fabric cover shell offers a harmonious solution for concealing the fabric roller.


Front profile bracket Joins the arms securely to the front profile. Notching permits adjustment of the angle.


Arm bracket
Reliable and secure, the arm bracket is made from high-strength aluminium alloy. Its round design matches the contour of the fabric cover shell.
Upper arm fork of forged aluminium.

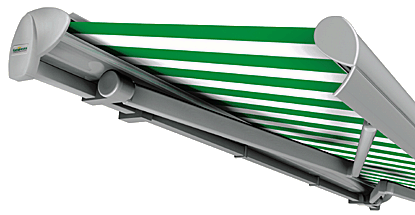

The casing
of the Family Design Plus
offers all-round protection
for the fabric roller


Hinged arm joint
The plastic-coated double cables are designed
for an extremely long service life:

no soiling of the greased cables caused by exposure to the environment

arm profile and cables of the same colour


The extremely high spring tension of the hinged arms ensures a superbly taut sit of the fabric. No resting of the awning cloth on the arm joints. Hinged arm joints feature a pin made of high-grade steel
