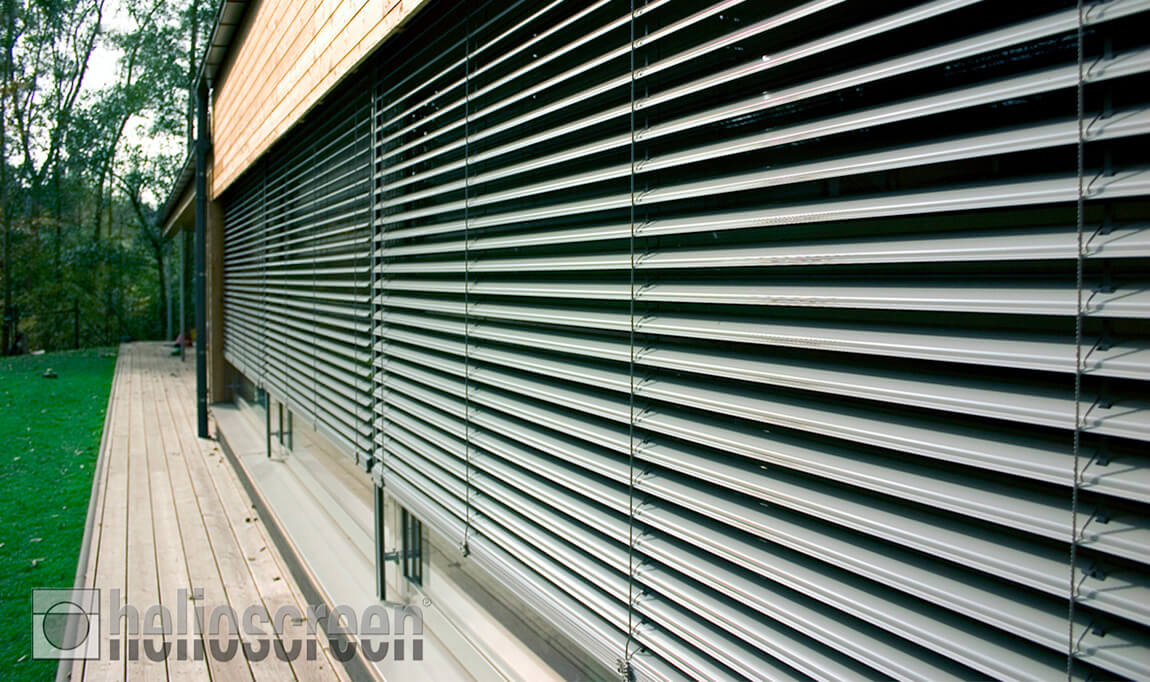

Design daylight with Helioshade ® HV80. It’s the advanced external venetian blind system that provides optimal heat protection and unsurpassed light control. Perfect for domestic or working environments, the HV80 lets natural light and sunlight through whilst minimising uncomfortable hothouse effects and eliminating blinding glare.
The elegant louvres can be set to any position and allow room temperature and light level to be perfectly matched to user requirements. When fully retracted HV80 provides a completely un-obstructed view.
Featuring stylish 80mm curved louvres with rolled edges for extra stability, Helioshade HV80 suits any external façade and comes in a range of modern designer colours.
Unaffected by extreme temperature changes, Helioshade HV80 external venetians reduce the sun’s penetration by up to 90% – providing huge air conditioning cost efficiencies. Whether you are an architect looking for a solution to help attain a Green Star™ rating for an office block or you’re conscious about your own needs in the home –the Helioshade HV80 has your environmental concerns covered.
A new addition to the Helioscreen range, the motorised HV80 external venetian is practical and robust – satisfying the most ambitious design demands of modern architecture.
- 3 year warranty
- Width 650-4000mm
- Maximumdrop 4000mm
- Available in white, silver, dark silver, bronze and dark grey
- Motorised operation
- Remote control option
- Automatic control with optional sun and wind sensor
- Integrates with building management systems.
- 58 x 56mm galvanised steel headbox with 14mm extruded aluminium turning shaft
- 80mm wide curved, 0.45mm aluminium louvres with rolled edges for added strength
- Fixing: galvanised top or face mounting brackets
- Pelmet option: 120mm deep, depth equals height of stacked louvres
- UV resistant polyester cords.
- 2mm stainless steel cable guiding – sheathed in PVC for added anti-corrosion and noise reduction
- 18 x 36mm extruded aluminium side channel with noise reducing lining and bottom limit stopper
- Adjustable fix brackets, cast zinc with aluminium adjustment piece. Adjust side guides from 55 to74mm from wall.
